VisualARQ

Flexible BIM for Rhino

VisualARQ is an architectural design software which enhances Rhino by adding powerful architectural object styling and dynamic documentation tools which adapt to fit your workflow.

VisualARQ works on Rhino 5 and Rhino 6

And now also on Rhino 7!

VisualARQ

Flexible BIM for Rhino

Freeform modelling

Freeform modelling Powered by Rhino – Convert any freeform geometry into an informed object with VisualARQ.

Freeform modelling

Freeform modelling Powered by Rhino – Convert any freeform geometry into an informed object with VisualARQ.

Design Automation

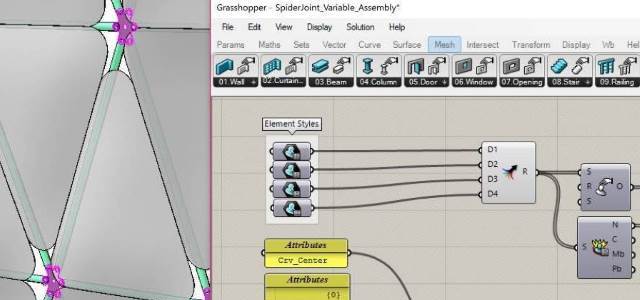

Automate design tasks with Grasshopper Visual Programming and the VisualARQ API and create custom parametric objects with Grasshopper Styles.

Design Automation

Automate design tasks with Grasshopper Visual Programming and the VisualARQ API and create custom parametric objects with Grasshopper Styles.

Powerful documentation tools

Dynamic and precise documentation always available from
the VisualARQ 3d model

Powerful documentation tools

Dynamic and precise documentation always available from
the VisualARQ 3d model

IFC

VisualARQ includes a built-in IFC import and export plug-in, which makes it possible to exchange IFC 2×3 files between Rhino and other AEC software packages.

IFC

VisualARQ includes a built-in IFC import and export plug-in, which makes it possible to exchange IFC 2×3 files between Rhino and other AEC software packages.

Latest news

VisualARQ at BIM World Paris 2021

VisualARQ at BIM World Paris 2021

BIM World 23-24 June 2021 Paris Expo – Porte de Versailles Rhinoforyour booth: J20 -DESK 1 Inscription The BIM World Paris trade fair is back after a convulsed period last year. The event will take place at the Paris Expo - Porte de Versailles, on 23 and 24 June....

Work with VisualARQ Grasshopper styles in Revit with Rhino.Inside

Work with VisualARQ Grasshopper styles in Revit with Rhino.Inside

This video (tutorial) shows how to work with the VisualARQ Grasshopper styles (VisualARQ objects driven by Grasshopper definitions), in Revit running VisualARQ inside Revit. This connection lets you work with the VisualARQ parametric objects directly in Revit, which...

List custom parameters in tables

List custom parameters in tables

The following video tutorial shows the process of listing custom parameters on VisualARQ objects with the Table tool. The chosen example comes from the requirement of a VisualARQ user, who wanted to generate a list of openings, indicating the wall style name where...
